Olympus PEN E-PL1 camera and PT-EP01 Underwater Housing

First look at the new micro four thirds E-PL1 camera from Olympus, and the PT-EP01 underwater housing

By Scott Gietler



SHARE THIS STORY

While walking around the PMA conference, I played around with the Olympus E-PL1 camera ($600 retail with a 14-42mm lens) which takes 3 new micro four thirds format lenses, which are very small. There is also an adapter ($175) that allows you to use any Zuiko lens on the camera.





It's quite a small camera that seems like a regular compact camera, except it takes these small changeable lenses, and has a much larger sensor size. The camera seemed to focus and fire faster than a regular compact, but not as quick as a dSLR. I also used it with a Zuiko 50mm macro lens and the required adapter. I found the auto-focus was usually quick but could be a little jittery and took a second to lock. It was fairly easy to set the manual controls on the camera.



Olympus micro four thirds cameras are smaller than dSLR's because they don't have a mirror box, meaning there is no viewfinder, only live view. There is an electronic viewfinder you can purchase, but you are really just seeing the live view and the experience is not the same as a real viewfinder.



Noteable changes from older Olympus PEN four thirds format cameras are an internal flash, and a lower price tag.



olympus micro four thirds camera



olympus micro four thirds E-PL1 camera





Olympus E-PL1 quick specs:

12 megapixel sensor

Sensor size: 17x13mm (same size as Olympus dSLR's)

dSLR Crop factor: 2x

Internal Flash

2.7inch LCD

1280x720 Motion Jpeg

In-body image stabilization

RAW & JPEG modes

Size: Compact camera size



Click here for the full Olympus E-PL1 review





Olympus PT-EP01 underwater housing for the E-PL1



I also played with the Olympus PT-EP01 underwater housing (also $600) for this camera, which seemed quite large given the small size of the camera, and did not allow port changes, so there is no dome port as of this time. The port is actually part of the housing and does not come off. The underwater housing had 2 built-in fiber optic ports, and will do TTL with Olympus strobes. An external strobe will be required. It works with only 2 of the 3 micro four thirds lenses - the 14-42mm and 9-18mm, both behind the flat port. It does not work with the micro four thirds 40-150mm lens.

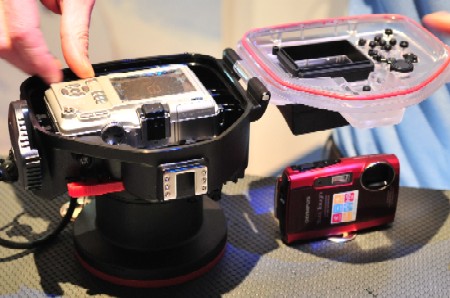

olympus underwater housing

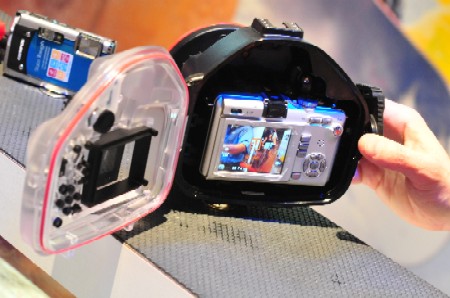

olympus pen e-pl1 underwater housing



olympus e-pl1 underwater housing





How to purchase the E-PL1 underwater housing

Support the UWPG and get the housing from our sister company, Bluewater Photo

Further Reading:

Underwater Housing features

Underwater Housing reviews

Digital underwater camera guide



Comments

Hi, i use this cam since

Hi, i use this cam since sept. 2010 and he is almost perfect.
Now i'm using also the 9-18 mm in a zen dome , it's really fantastic
for macro i use the subsee +10
look for sample photo's :
http://picasaweb.google.com/ilovebonaire2010

I did buy this combination in

I did buy this combination in june 2010. It is really great. I am using two INON Z240 flash lights. It is not entirely correct, that you can't switch the port. ZEN has a dome port WA-100 especially for the Olympus PT-EP01 housing. Gives you real wide angle possibillities with the E-PL1. After buying the ZEN dome port I did not switch back to the Olympus flat port.

Hi I have the same strobes

Hi I have the same strobes with my bundlle but have some minor problems with sync and powerfull.In what setting do you use the camera flash on manual for sync with TTl in Inon? You know it can be use on full,2d curtain,red eyes, auto or something else.Or the problems are the strobes settings? other thing what lens are you ussing? I have the 14mm-42mm and the Zen Dome; Let me know Thanks

Hi I have the same strobes

Hi I have the same strobes with my bundlle but have some minor problems with sync and powerfull.In what setting do you use the camera flash on manual for sync with TTl in Inon? You know it can be use on full,2d curtain,red eyes, auto or something else.Or the problems are the strobes settings? other thing what lens are you ussing? I have the 14mm-42mm and the Zen Dome; Let me know Thanks

Hi, thank you for your

Hi, thank you for your thorough review. I am planning on going diving next week with my olympus E-PL1 plus housing plus UF2 strobe. What accessories do I need to connect the flash: short arm and flexible cable? Thank you. Best Regards, Konrad
