Aquatica Nikon AD500 Housing Overview

Aquatica announces housing for Nikon D500, with ergonomic control layout, advanced connectivity to strobes and more
By UWPG News

Aquatica has just announced their housing for the Nikon D500 DSLR camera. This camera and housing combo will be very popular with Nikon underwater photo and video shooters who want a proven and reliable housing.

The 20.7 MP Nikon D500 raises the bar in DX format Nikon cameras. The best feature is the revamped autofocus system, which boasts 153 AF points, 99 of which are cross-type. Improved focus tracking and a joystick for quickly adjusting the focal point location help capture fast action. This is a major jump for Nikon and puts the D500 into the consideration set of those who would have previously chosen Canon's dual-pixel AF technology.

In addition, the Nikon D500 has a large viewfinder with 100% coverage, 4K video resolution, and 10 fps continuous shooting with a buffer far larger than similar camera bodies (using XQD mem cards)... that's some processing power! If you haven't yet, you can read our Nikon D500 Pre-Review.

The Aquatica AD500 housing brings pro-level control of the D500 to underwater shooters. Below is the press release with full info.

Purchase:  Aquatica AD500 Housing

U.S. Retail Price:  $3,195

Availability: mid-July at Bluewater Photo

Press Release



Introducing Aquatica AD500



Aquatica AD500 - Available on mid-July 2016

The new Aquatica AD500 housing is designed specifically for the long awaited Nikon D500 camera. With 21mp still image, 4K video possibilities, impressive level of low light performance, this Nikon D500 is a worthy addition to the DX format, a much appreciated sensor size for underwater photography.



The Nikon D500

The Nikon D500 camera finally joins the rank of the popular DX format Nikon DSLRs, to the underwater photographer. It brings interesting features.

The 20.7 MP Nikon D500 raises the bar in DX format Nikon cameras. The best feature is the revamped autofocus system, which boasts 153 AF points, 99 of which are cross-type. Improved focus tracking and a joystick for quickly adjusting the focal point location help capture fast action. This is a major jump for Nikon and puts the D500 into the consideration set of those who would have previously chosen Canon's dual-pixel AF technology.

In addition, the Nikon D500 has a large viewfinder with 100% coverage, 4K video resolution, and 10 fps continuous shooting with a buffer far larger than similar camera bodies (using XQD mem cards)... that's some processing power! If you haven't yet, you can read our Nikon D500 Pre-Review.



Nikon D500 Key Features:

  • UHD 4k from a 1.5x crop sensor

    • With flat picture profile for added post processing

    • On screen highlight warning

    • Power aperture control

  • Impressive AF performance

    • 153 point AF module

    • 55 selectable AF points

  • 100% viewfinder, with 1.0x magnification

    • The largest in cropped sensor DSLR

  • 10 frames per second rates

    • With 200 Raw files buffer using XQD

  • Rugged construction of Magnesium Alloy and Carbon fiber composite

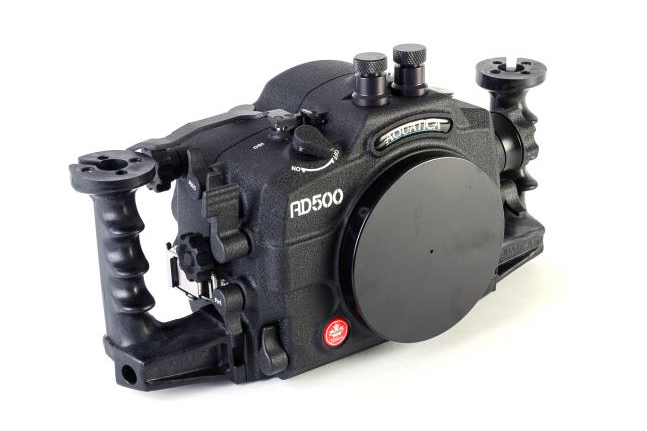

The Aquatica AD500 Underwater Housing

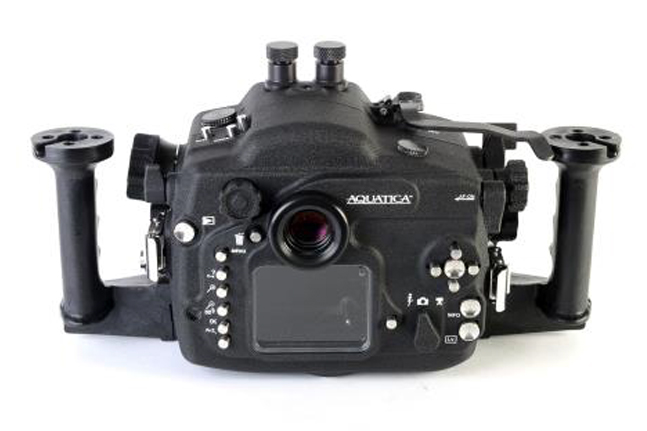

Control Layout:

Aquatica designed the AD500 housing by carefully selecting the features that will improve performance for underwater imaging. We then ergonomically placed the vital controls where they were most needed, right at your fingers tips. At the core of this housing design one can trace over 30 years of expertise in this field. Years of knowledge that have pushed us forward in incorporating new ideas, concept and technological advances to these constantly evolving imaging tools.

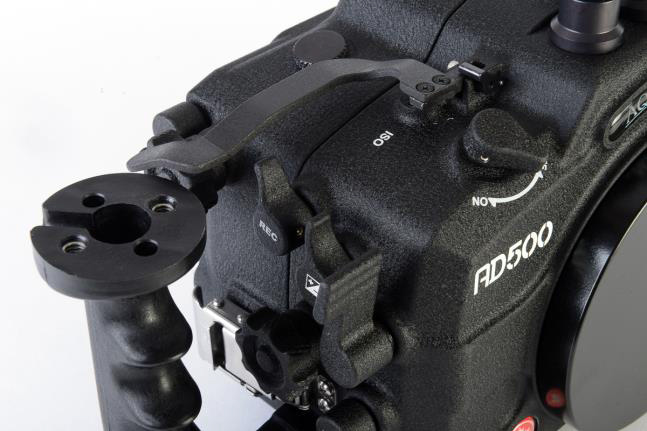

ISO is one of the key controls in managing the exposure in video, hence particular attention was made in bringing this control at your thumb fingertip. Exposure compensation been crucial as well, a dedicated lever has been implemented for engaging it quickly when needed. The control pad can also be accessed quickly via a set of extended controls that brings it close to your right hand for easy access, same goes for the AF-ON lever with its wide range of options available through the CSM menu of the camera. The Fn1 lever located in front and Fn2 button on the rear also gives you access to a range of CSM features. Two oversized and conveniently placed buttons give a speedy access to the info and Live View activating features on the camera, recording is as easy as pressing on the dedicated lever placed strategically close to your thumb.

HANDLING THE HOUSING, THE BEST GRIPS IN THE INDUSTRY:

Handling is made with a pair of grips that have become the bench mark in comfort since their introduction over a quarter of a century ago. These grips are a perfect example of Aquatica’s philosophy, change should be implemented to improve a product, and not for the sake of novelty, when grips are as perfect as these are, leave them alone! Our grips are light, sturdy and form fitting. They contribute to making your underwater photography experience more pleasing and comfortable. Mounting points on top of them allows strobes arms, such as those from our Delta 3 line, to be mounted securely, freeing the top of the housing from unnecessary clutter.

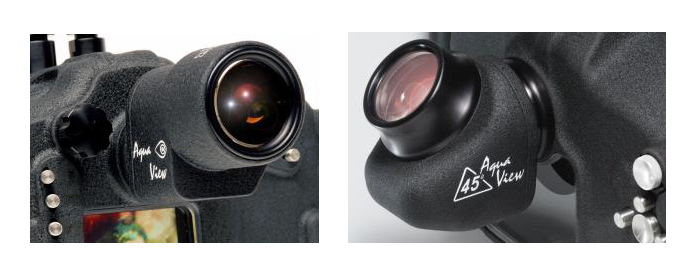

VIEWING OPTIONS:

The Nikon D500 already is boasting the largest and best view finder on its category, viewing can further be improved underwater with a choice of two enhanced view finders. Two Aqua View finders are available to improve underwater viewing through the camera finder. The Aqua View 180o finder offers straight through line of sight viewing with a generous viewing area while the Aqua View 45o offer definitive comfort in viewing while shooting upward or for those down in the sand macro situations. Both accessory viewfinders are designed in such way as to minimize the blockage of the rear LCD when shooting using the rear LCD screen.

As a standard feature, the housing comes equipped with a quality multiple elements Galileo type eyepiece and the rear LCD has been angled to give the viewer a more comfortable viewing angle when using this one.

STROBE CONNECTION OPTIONS:

The Nikon D500 already is boasting the largest and best view finder on its category, viewing can further be improved underwater

  • 20080-UWT This AD500 housing  features our optional integrated TTL converter circuit board which is compatible with a wide range of underwater strobes. This converter is offering both automatic strobe exposure, either through optical relay using optical fiber or via standard and readily available electrical sync cords from your strobe manufacturers. Alternating between types of triggering is an easy affair, even in the field, with our easily replaceable bulkhead strobe connector design.

  • 20080-OPT Included with this optically set up housing version is the LED flash trigger. This LED trigger is powered by two popular “off the shelf” CR 2450 batteries and averaging 4,000 to 5,000 burst of light. This LED trigger slides into the hot shoe of the camera like any other hot shoe accessory would. The 20080-OPT version of this housing is ready to accept standard optical fiber sync cable commonly found on the market, there is no need for special proprietary or custom type cord, the optical fiber cord supplied by the strobes manufacturers are ready to use as is.

  • 20080-NK This version is set up with a pair of time proven Nikonos bulkheads connectors, the same available on all our current Aquatica DSLR housings. It is a well-established standard, which has been the back bone of strobe technology for decades and still by far the most distributed type of strobe connectors in the whole underwater photography industry, every strobe manufacturer offering then as a means of connection. This 20080-NK housing comes with not one, but two of these connectors installed. These, as well as the optical ones are easy to replace in the field, should one decide to alternate between way of triggering their strobes, no special tools are required and the operation is done in minutes.

  • 20080-KT This version is equipped with a trusted Ikelite strobe connector. Since many hard working underwater professional photographers prefer using Ikelite strobes and connectors for their ruggedness and reliability, Aquatica has made a point to have this housing version available to its users.

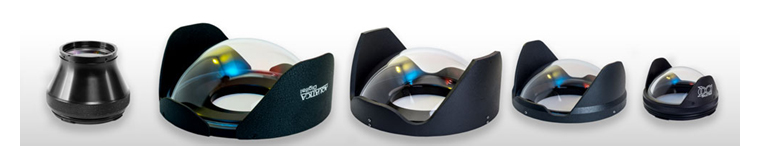

PORT SELECTION:

The Aquatica AD500 uses our excellent line up of existing ports for the DSLR line of housings. And simply put, a lot of effort has gone into giving you access to the most appealing lenses for this camera with the best port combination for them.

Since ports are such a vital part of the optical formula in any underwater photographic system, we at Aquatica, have built one of the most comprehensive selection available for underwater imaging. Our flexible modular system of extension rings, dome and flat ports is ready to face the challenge of constantly evolving lenses coming out on the market. The irreproachable optical quality of these ports have long made them the choice of demanding professionals from around the world.

Wide angle imaging requirement can be addressed with dome of 4”/100mm, 6”/150mm, 8”/200mm and 9.25”/230mm, from ultra wide angle close up situations to top quality over/under images. Our dome ports have you covered.

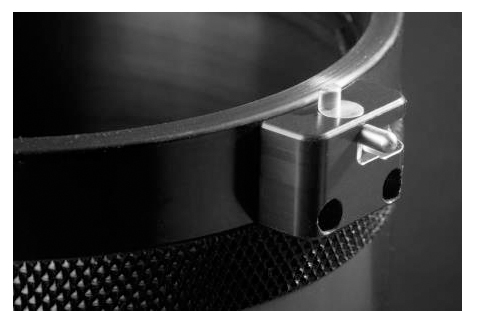

Macro imaging needs can be fulfilled using our recently introduced Mini Macro port, a vital part of the Aquatica ACU System, this port has a narrow frontal signature making lighting in tight corner easier. A bayonet mount is located on its front end for attaching our convenient ACU system flip holder with the potential of attaching up to two ACU wet diopter close-up lenses.

Tying the port system together are a set of fourteen locking extension rings, ranging in length from .65”/16.5mm to 3.82”/97.5mm. Port extensions are strategic partners in the optical chain, they serves two purposes, in the case of wide angle lenses, it helps optimize the performance of wide angle lens by properly placing their optical center with that of the dome port and for macro lenses, it give added length for accommodating longer focal length lenses such as the 105mm, or when using internal accessories such tele converter which may contribute to the added magnification of a given lens.

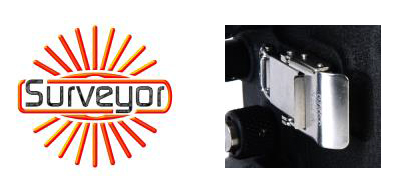

SAFETY FEATURES:

The Aquatica AD500 comes standard with our own Surveyor moisture and vacuum monitoring sensor circuit installed at the factory. The housing can also be ordered with the optional pressure extracting valve and pump installed at the factory. The visual and audio signal will attract your attention should any of the O-ring become damaged or hindered by sand, hair or any foreign objects that would compromise the sealing integrity of the housing. All that is required are a few simple steps for your peace of mind and knowing that your equipment is safely protected from the environment.

Securing of the housing is done with time proven stainless steel latches equipped with safety tabs. These are non-gimmicky, their solid track record has demonstrated that what they lack in fashion style, they more than make up in resistance to failure, jamming up or corroding over time. Chosen as a standard mean of securing highly valuables assets and equipment by scores of sensitive scientific and military equipment manufacturers, this method of securing is beyond reproach when it comes to reliability. Their simple and efficient design makes them reliable and they are a reflection of Aquatica’s commitment to rely on time and field proven technology.






Purchase the Aquatica for Nikon D500 Underwater Housing
