Fantasea Canon G9 X Housing Review

We review specs, innovative touch screen access, ergonomics, and sample content shot with the Fantasea FG9 X underwater housing
By Brent Durand

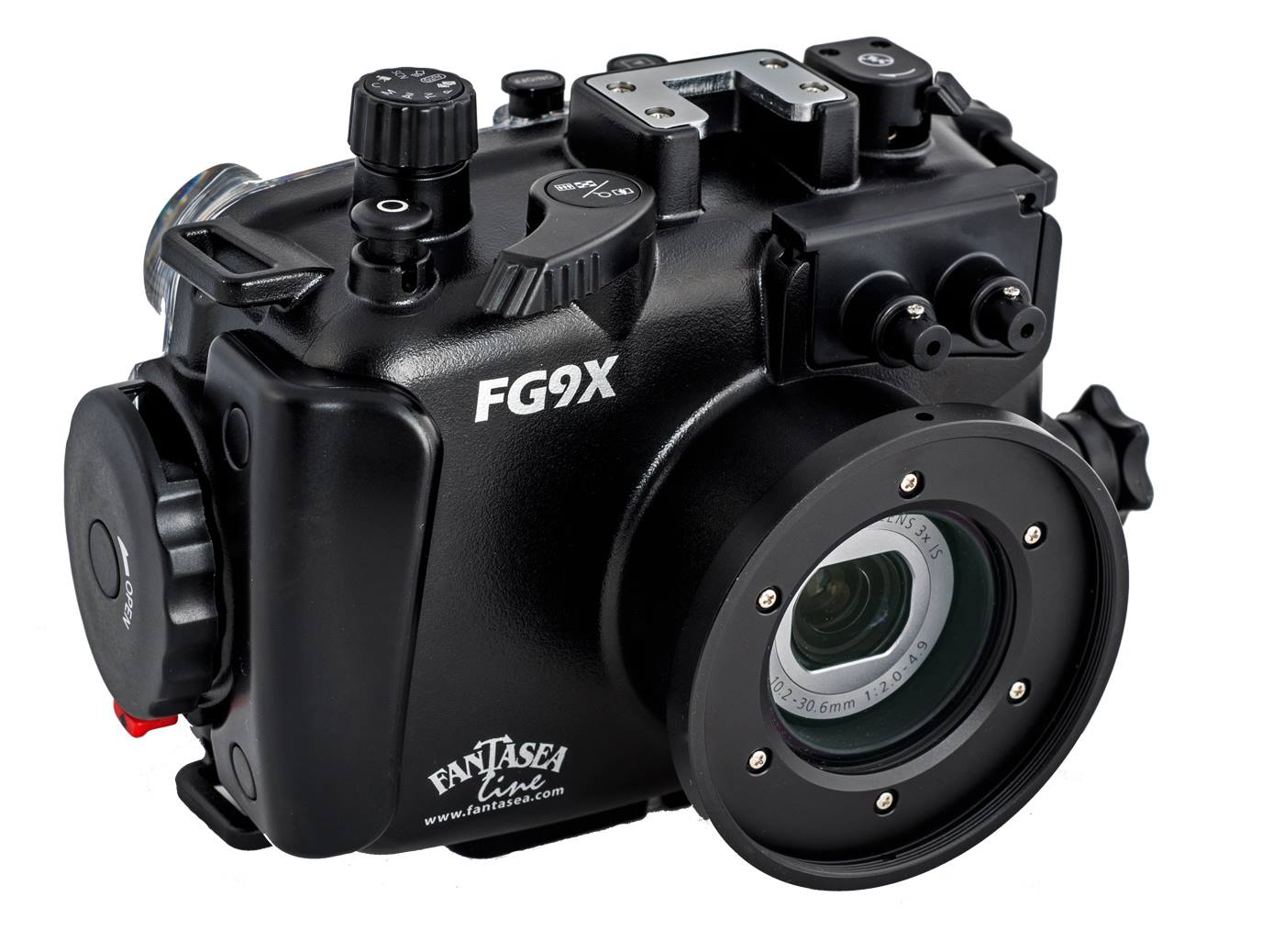

The Fantasea FG9X housing is the latest in a great line of compact camera housings and will be a staple in the world of compact camera underwater photography. The housing is a great way or beginners to get their G9X into the water, but also allows access to all camera functionality, and when combined with wet lens accessories, strobes and lights, becomes a very powerful underwater imaging system.

The Canon G9 X is the smallest compact camera available with a 1" image sensor. This large high-sensitivity 20.9 megapixel CMOS sensor delivers stunning image quality on par with the best compacts on the market, combined with Canon's very fast DIGIC 6 processor. The lens shoots from f/2.0 - f/4.9 with a 3x optical zoom (equivalent to a 28-84mm lens) for great versatility above and below the surface. A minimum focus distance of 2 inches (in macro mode) enables you to shoot tiny macro critters even before adding a diopter.

Read our overview and comparison of the Best Compact Cameras of Summer 2016.

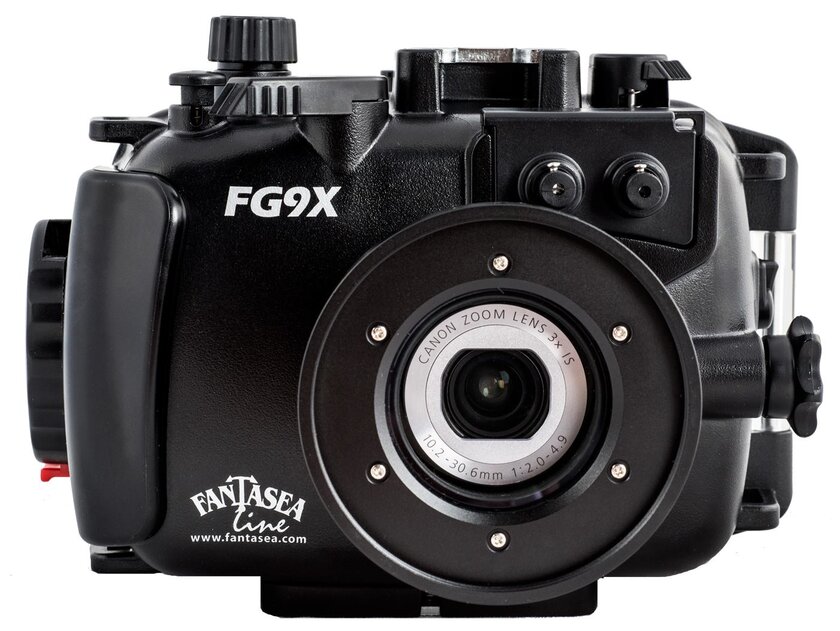

The Fantasea FG9X housing has been designed to optimize control of the G9 X underwater, with access to all camera buttons, ergonomic and clearly labeled controls, as well as access to essential contact points on the camera's rear LCD touch screen. We'll take a deeper look at the FG9X in this housing review and overview.






Learn more and purchase the Fantasea FG9X Housing




Jump to review section:

Housing Highlights     |     Overview and Controls     |     Advanced Features     |     Demo Video

Recommended Accessories     |     Sample Photos     |     Conclusion



Fantasea FG9X Housing Highlights

  -  Canon G9 X offers a handful of quality features, all so important to underwater photographers:

        -  Large 20.2 MP 1.0-inch CMOS sensor

        -  Bright F2.0 28-84mm lens

        -  Wide ISO range of 125-12800 for low light photography

        -  Full HD Videos (1080p/60p)

        -  Slim and Stylish - only 7.37 ounces (209g)

        -  Intuitive 3.0-inch touch panel

        -  Full manual control with Control ring and Mode Dial

  - The FG9X Housing introduces the highest and most professional standards of function, style and durability

  - Full access to camera controls and functions with clearly marked buttons

  - 67mm thread for macro and wide-angle wet lenses

  - Access to essential contact points on camera LCD screen with a new touch screen technology

  - Depth rated to 60 meters / 200 feet

  - Shock resistant construction

  - Ergonomic design

  - Double O-ring protection for a perfect watertight seal

  - Moisture Detector, Hand Strap and Port Cover Included

  - A complete accessory system available such as the following:

        -  Wide-angle and macro lenses

        -  Color correction filters, flashes

        -  Video lights

        -   All necessary adaptors and connectors

  - Manufacturer's warranty





FG9X Overview and Controls

The Fantasea FG9X housing is already proving popular among underwater photographers. Several Fantasea photographers and friends have been using the housing with great results - shooting both photo and video. I had a chance to get my hands on the housing for this review as well.

A big concern for using the G9 X underwater has been the need to rely on the rear LCD touch screen for full camera functionality. Fantasea has addressed this issue with 5 new buttons placed at essential points of the G9X's rear LCD screen. This ingenuitive idea will also help make the transition from using the camera on land to using it in the housing underwater even easier for topside shooters.

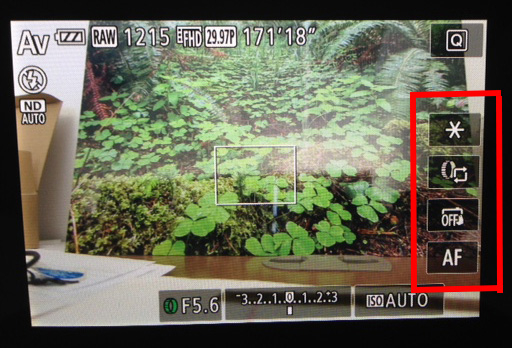

A view of the touch buttons accessible with the Fantasea housing.

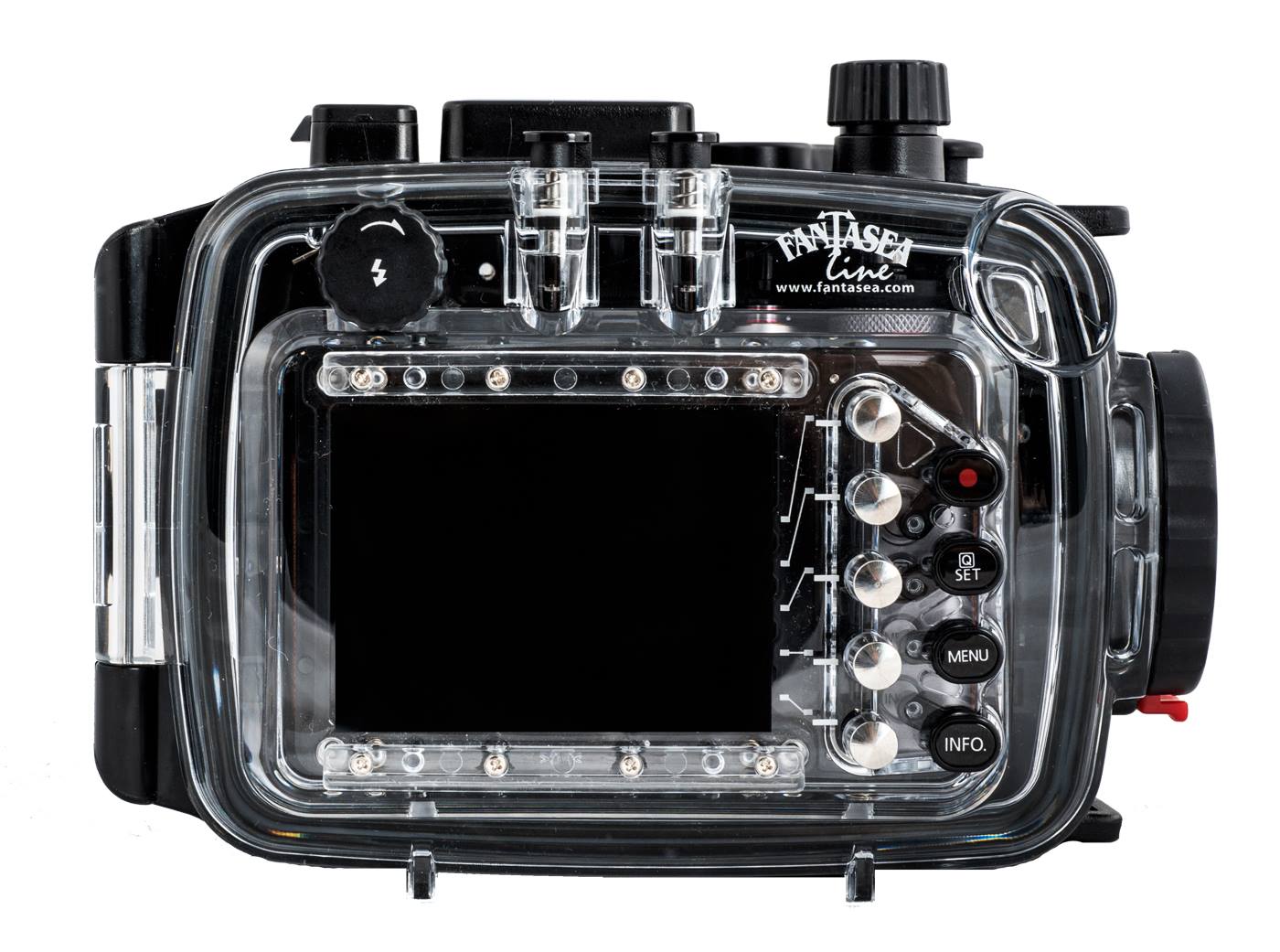

Other controls are are accessed through traditional buttons and dials.

Fantasea housings are very easy to use underwater. The buttons have a large fingerprint that makes them easy to push, plus offer plenty of space for clear labeling. The knobs offer precise control of camera settings and respond the same as some very popular DSLR housings. Flared features on the right side thumb and fingers position make the housing very easy to hand hold, while the tripod mount allows you to attach a tray and build a larger system with strobes and/or video lights.

Inserting (and removing) the camera into the FG9X housing is easy, as it slides into place before being held steady by a spring-loaded pad on the housing's rear cover. This makes changing batteries and memory cards easy. The double o-rings are easy to access, inspect and clean.

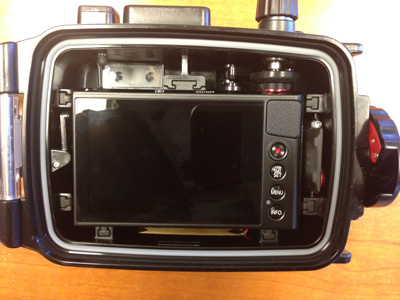

A view inside the Fantasea Canon G9X housing.

The camera's front control ring, which is used to change exposure settings (aperture, shutter speed, ISO) is controlled with a knob on the front left side of the housing. The knob requires your left hand to turn, which should be readily available when shooting, whether using it to stabilize the housing itself or whether you have the housing mounted to dual arms/handles.

Fantasea has also included a moisture detector with a sensor on the (inside) bottom of the housing. The LED light is tucked away on the right side but is clearly visibile when the alarm goes off.

The top of the housing has a cold shoe mount, which allows you to add a ball mount for accessories, like focus light, GoPro and more. The cold shoe mount is an essential, but be sure to attach the accessory to the housing with a lanyard in case the ball mount slips out of the cold shoe.

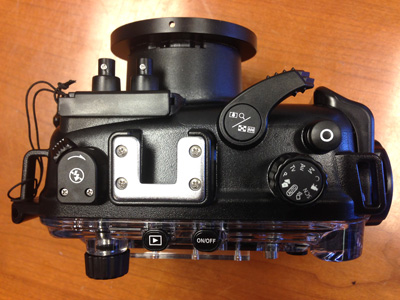

Top view of the Fantasea Canon G9X housing.


Fantasea FG9X Advanced Features

The FG9X housing has two areas where advanced users can add accessories, making the housing versatile in handling many different shooting situations.

Flash Diffuser

The housing flash window cover is removeable and adaptable. When using the camera's on-board flash (macro without strobe/light), you can add the diffuser over the housing flash window to evenly disperse and soften the light.

Advanced shooters will opt for the fiber optic connection cover instead of the diffuser, which allows you to plug in one or two fiber optic cables for strobes.

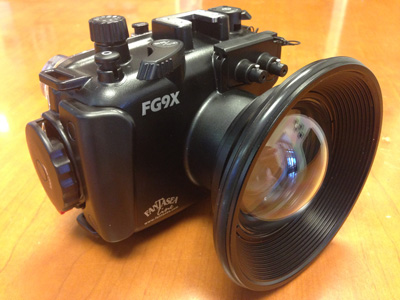

67mm Port Threads

This universal port threading allows use of the best wide-angle and macro wet lenses for compact cameras. We've included several below, but you can visit Bluewater Photo to view all the Wide-Angle Wet Lenses and Macro Wet Lenses.



Fantasea FG9X Demo Video



Recommended Accessories

The following are just a few of the many accessories available to help you get the most from your Canon G9 X and Fantasea housing. Be sure to contact the experts at Bluewater Photo if you're interested in learning more.



Bluewater +7 Macro Wet Lens











Fantasea Bigeye M67 Wide-Angle Lens









Fantasea Radiant 1600 Video Light









Sea&Sea YS-03 Flex Arm Strobe Package













Fantasea Nano Double Ray Set









Fantasea Canon G9X Photos





Conclusion

The Fantasea FG9X housing is a very affordable way to house your Canon G9 X without sacrificing access to controls or quality. The housing is compatible with a wide range of macro and wide-angle wet lenses, plus the essential strobes, lights trays and arms. The buttons are clearly labled for easy operation underwater and the ability to use the touch screen is very cool.
