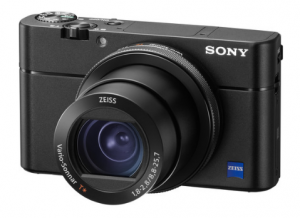

Sony RX100 V and VA Review

Newly updated! Features, Wet Lens Options, Underwater Photos, Videos and Housings
By Bryan Chu and Contributors

The Sony RX100 line of cameras is one of the most popular compact camera options for underwater shooters. A large image sensor, great feature list, and variety of underwater housing options have kept the RX100 cameras a top choice in the compact camera field.

There are a number of significant improvements to this camera including 24 fps burst shooting, double the time shooting at 960 frames per second (very slow motion video) and 4K video with 5K oversampling (for even better quality 4K). Are the improvements to this camera significant enough to consider upgrading your compact rig? How does it compare to other compact options? Read on to find out.

We asked some users of the Sony RX100 V and RX100 VA* in the Underwater Photography Guide community to contribute their best shots and advice for this camera. These photos really show the sensor's dynamic range, crisp and quick auto-focus, and great overall image quality.

*The Sony RX100 VA is very similar to the RX100 V, with only minor upgrades. Because of this we will be referring to the RX100 VA as the RX100 V throughout the review.





The Sony RX100 V and VA is available now at Bluewater Photo!


Jump to section:

Sony RX100 V Specs   |  Underwater Photography Features   |   RX100 VA Upgrade   |   Wide Angle Shooting

Macro Shooting   |   Underwater Videography Features   |   Limitations and Downsides

   Underwater Housing Options  |   To Buy or Not To Buy?   |   Conclusion



Specs

Key Upgrades from RX100 IV

  • New 20.1-megapixel 1-inch Exmor RS BSI CMOS sensor
  • New BIONZ X image processor and front-end LSi (faster camera operation and image processing speed)
  • 315-point phase detection autofocus system
  • Anti Distortion Shutter dramatically reduces rolling shutter effect when recording video
  • 24 fps RAW burst with AF tracking for up to 150 photos. Wow!
  • New AF-A mode allows camera to switch between single and continuous AF (usually found on DSLR AF systems)

Sony RX100 V Complete Specs

  • 20.1-megapixel 1-inch Exmor RS BSI CMOS sensor
  • 315-point phase detection autofocus system: focuses in 0.05-sec
  • AF-A autofocus mode in addition to AF-S and AF-C
  • New BIONZ X image processor and front-end LSi (faster camera operation and image processing speed)
  • ISO range 125 - 12800
  • 24 fps RAW burst with AF tracking for up to 150 photos. Wow!
  • Anti Distortion Shutter dramatically reduces rolling shutter effect when recording video
  • ZEISS® Vario-Sonnar® T* 24-70mm, f/1.8 - 2.8 Lens with 10 elements in 9 groups and a 0.17 ft (5 cm) minimum focusing distance
  • Adjustable LCD screen - 2.95 inches (3.0type) (4:3) / 1,228,800 dots
  • 100% coverage viewfinder
  • WiFI and NFC connectivity
  • Dimensions: 4 x 2 3/8 × 1 5/8 inch (101.6 x 58.1 x 41.0 mm)
  • Weight: Approx. 10.5 oz (299 g) (Battery and Memory Stick Duo are included) / Approx. 9.6 oz (272 g) (Body Only)

It’s clear that Sony’s focus with the RX100 V camera was adding technical capabilities, and they have made some impressive additions to the spec list. The high-speed shooting mode can now do 24 fps burst shooting in jpeg and RAW, with full autofocus and autoexposure. The autofocus is incredibly quick; 0.05-seconds with 315 AF points. This is a vast improvement over the RX100 IV. And the 4K video quality has been amped up several notches, with oversampling from 5K footage, reduction in rolling shutter, and the option to shoot extended super slow motion at 960 fps for twice as long as with the RX100 IV.

Sony RX100 VA Upgrades from the RX100 V

  • Image processor updated, which will make an improvement to image quality
  • Shooting in 24 fps burst mode with full AF/AE (auto-focus/auto-exposure), the buffer size has been increased from 150 jpegs to 233 (50% improvement)
  • "My Menu" functionality allowing you to register menu items for instant recall and customize menus. You can also make button assignments for up to 30 functions to retool the camera interface for your shooting preferences.
  • "Zone" added as an option for autofocus area
  • Display lag time in EVF (electronic viewfinder) reduced
  • Proxy movie mode (captures 720p footage alongside 4K capture)
  • Custom button can now control one of 62 camera functions, instead of the previous 44
  • High precision eye autofocus feature (improvement over original)
  • A number of other functionality improvements



Implications of RX100 VA upgrade for Underwater Photography

The updated image processor of the RX100 VA, with a potential for improvements to image quality, is of course a nice thing to have. It also means that file storage underwater could be more seamless with less lagtime.

As far as the burst mode buffer upgrade, unless you tend to shoot fast action in ambient light conditions or with video lights, and run out of buffer with the 150-image size, this change will not affect your underwater photography. It could be useful for topside photography, although 150 images at 24 fps already gives you 6 seconds of continuous burst shooting. But there may be some situations where the extra 3 seconds of continuous burst shooting could help you get the shot you want. And although the reduction in EVF display lag time is nice to have on land, that won't affect underwater shooting as the EVF can't be used underwater.

The changes to menu functionality is another upgrade that is significant for underwater photographers. The ability to customize button assignments should help avoid having to cycle through menus when you have to change settings quickly to adjust for new shots or changing conditions. This will allow for a better shooting experience underwater.

Overall, this update looks more like a firmware update than anything else, and with the exception of the customizable button functionality is not expected to have a noticeable effect on underwater photography functionality. If you are looking to buy an RX100V, this will be the new version available, and there's no reason not to get it. But there might not be much reason to think about upgrading from an existing RX100V - if the advantage of a long lens sounds interesting, it would be better to go for the new Sony RX100 VI.



Underwater Photography Features

Lens

The 24-70mm F1.8/2.8 lens is the same as used in the RX100 IV. It is faster (F2.8) at 70mm than the lens on the RX100 / RX100 II, which is beneficial for low-light and indoor shooting. However, for underwater photography, I don't normally shoot with a wide open aperture, especially at the longer range of 70mm. Overall I would prefer the 100mm reach of the RX100 and RX100 II over the RX100 V's speed, as that allows for better photos of shy subjects and better macro shooting.

Autofocus

The completely redesigned, 315-point phase detection autofocus (AF) system is lightning fast. By combining high-speed phase-detection AF with extremely accurate contrast-detection AF, this hybrid system allows the camera to lock onto and capture moving subjects in merely 0.05 seconds. This improvement is most noticeable when shooting in Continuous AF mode. Note that phase detection autofocus systems are typically found on dSLRs and higher-end mirrorless cameras, but not on compacts (until now).

Sensor and Photo Quality

The DxoMark sensor rating of the Sony RX100 V is 70, very good for a compact camera. The sensor is rated the same as the RX100 IV, slightly better than the RX100 II & III (both got 67), and about equal to the Canon G7X (got a 71). The sensor rating takes color depth, dynamic range, and low-light ISO performance into account. The image quality of this camera is rated by DPReview to be almost identical to that of the RX100 IV. That is to say, the images and video are outstanding; professional level photos and video can be taken with this camera.

Strobes, Flash and TTL Capability

Strobes are external flashes for use underwater. They help make your photos sharper, and more importantly, restore true colors to marine life. (When lit only by ambient light, subjects lose color through all the water between them and the surface, and between them and your lens). Check out this article about strobes for more information.

Through-the-lens (TTL) is a strobe setting where your camera controls your strobe power based on its own light metering. The internal flash trigger is transmitted to your strobes via fiber optic cables, and your strobes fire with a corresponding strength. You can get optical TTL when using fiber optic cables with the Sea & Sea YS-03, YS-01, YS-D1, and YS-D2 strobes. You can also use the Inon Z240, Z330, S2000, or D2000 strobes. TTL works in all modes - P, A, Tv, and manual mode.

One notable downside of the RX100V is that if you are using a strobe, you'll have to wait 1 - 4 seconds for the internal flash to recycle, as there is no way to turn down the internal flash power. (Note: the Canon compact cameras have this option). This may limit you in situations where you want to take multiple exposures quickly. One of our users found that they would have internal flash delays at the tail-end of dives after taking almost 200 photos.

White Balance Capability

Although the Sony RX100 V does not have "1-touch" custom white balance, the custom white balance is like that of the RX100 IV; good and easy to use. The custom white balance function uses a small circle in the center of the photo to evaluate the white balance, instead of using the entire screen, which is very nice. You can store the white balance setting in 3 different banks. You can't set the white balance in video mode, but you can start and stop video in any of the camera modes so that is not really a big deal in our opinion.

Wide Angle Shooting

As with all compact cameras, the RX100 V's lens covers somewhat wide-to-mid-range focal lengths. The capabilities can be greatly improved for wide angle shooting by using wet lenses, which connect to the outside of the camera housing and increase the angle of view.

RX100 V Wide-Angle Wet Lenses

A wide-angle wet lens increases the field of view, which means that for shooting a given subject at a certain size in your photo, you have to be quite a bit closer to it. Although this can be a hassle with a skittish subject, what it does mean is that you get less water between the camera and your subject. And less water means a clearer subject, as well as better lighting from video light, photo light or strobe, which means much better colors. A wider angle also allows for more dramatic shots, especially with large subjects like oil rigs, kelp forests and wrecks.

Macro Shooting

The 70mm max focal length of the native lens of the RX100 V does not provide as good reach for macro shooting as the 100mm length of the RX100 and RX100 II. A wet macro lens increases the magnification of the camera lens, allowing you to shoot macro images of much smaller subjects than with just the camera alone.

RX100 V Macro Lenses

The RX-100 at 100mm can take a photo 3 inches across, while the RX-100 V at 70mm can take a photo 4 inches across. When using the Bluewater +7 macro lens, you can take a photo 1.37 inches wide at maximum magnification with the RX-100. With the RX-100 V, you can take a photo 1.78 inches across, and you also have a little less working distance with the RX-100 V. So while you can still get good macro shots, you get more magnification with the first two RX-100 versions than with the later versions.

Underwater Videography Features

The RX100V takes extremely high quality video, which rivals that of significantly more expensive cameras (including those dedicated for video). It has SLog2 gamma and focus peaking, and takes very high quality 1080p HD video (without even getting into the even higher resolution 4K option). Here is a great video taken in the Galapagos by Juan Quinteros, with the RX100 V in HD video mode.

4K Video

If you have the right memory card, the RX100 V can shoot in 4K, at a 100Mbps bit rate. It actually collects about 1.7 times as much information as required for basic 4K movie output, and this oversampling effect results in even higher quality 4K video than that of the RX100 IV. Improvements have also been made to drastically reduce the "rolling shutter" effect from that of the RX100 IV.

Photo Capture function lets you select a moment from a 4K movie in playback and save it in the form of a highly detailed still image file of over 8 megapixels. Likewise, you can create a 2-megapixel still image file from a Full HD movie that has been recorded.

Slow Motion

In slow motion mode, the camera can take ~4 seconds of 960fps footage in quality priority mode (which we recommend, or ~7 seconds in regular mode), that will take 64 seconds to replay at 60fps. A neat feature is that there are two recording modes for slow motion: start trigger and end trigger. Say that you have a sea lion swimming around you and blowing bubbles, and you want to capture in slow motion the moment it opens its mouth and starts letting bubbles out. If you use start trigger, you have to anticipate the action, and hit the MOVIE button before the sea lion opens its mouth. But if you use end trigger, you can keep the sea lion in view while the camera writes to the buffer, and then hit the MOVIE button after the sea lion has blown its bubbles. The camera will then record slow motion video of the 4-6 seconds prior to hitting the MOVIE button, thus capturing in slow motion the exact moment the sea lion first opened its mouth!

Here is a sample slow-motion video taken with the RX100 IV. The slow motion video capabilities of the RX100 V are identical to those of the IV, except for the ability to take slow motion videos that are twice as long.

Filmed by Scott Gietler and Tommy Stylski of Bluewater Photo at 960fps.

Limitations and Downsides

Battery Life

The CIPA rating of 220 shots is a significant reduction from the RX-100 IV (280) and from the competition (265 for the Canon G7X mark II). That’s not to say that you can only get 220 shots from one battery in this camera – testing is done with high flash usage and the LCD screen remaining on after each shot. Especially when shooting in burst mode, you can get quite a few more shots on one battery; the point is that this camera will not get as far on one battery as its predecessor or as its competition. What this means from the standpoint of shooting underwater, and as shared by a couple of users from the community, is that you may want to swap out your battery between each dive to make sure you don't run out of juice underwater (or at least once every second dive). And this could have larger ramifications for those who take lots of underwater video.

Limited 4K Video Shooting Length

There is a 5 minute recording limit when shooting in 4K video mode, to prevent overheating (same as with the RX100 IV).

Size

The RX100 V is the same dimensions as the RX-100 IV, but both are 10% larger and 15% heavier than the original RX-100. So although it is still a small camera, it is best classified as "semi-pocketable" instead of slim and truly pocketable.

Cost

The RX100V is more costly than all the other RX100 models, and significantly costlier than the Canon G7X II.

Shooting Limitations

As mentioned above, the limited reach of the 24-70mm lens makes it more difficult to take photos of macro subjects or shy subjects. The flash recycle time of 1-4 seconds reduces the ability to take multiple shots quickly while using strobes.

Sony RX100 V Underwater Housings

Since the RX100 V has the same dimensions as the RX100 IV, all housings for the RX100 IV except for the Nauticam version fit the RX100 V. There are six underwater housings available for the Sony RX100 V. Each have different pros and cons, most importantly around pricing and ergonomics, and all offer a wide range of accessories available through Bluewater Photo.

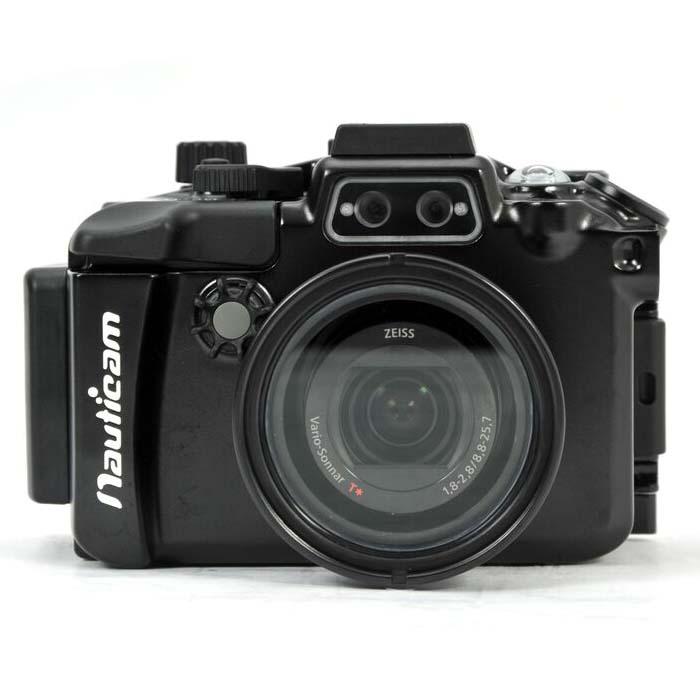

Nauticam RX100 V Underwater Housing

The Nauticam RX100 V housing is milled from a block of solid aluminum, then hard anodized. The result is a rugged and reliable piece of gear that will stand up to saltwater and the daily rigors of diving. Since the housing accesses all of the camera controls, including the front control ring, the user can take advantage of the enhanced programmability in the RX100 V. The housing also has a 67mm port and can support multiple wet wide angle lens options, including the Nauticam WWL-1.

Purchase the Nauticam RX100 V Housing

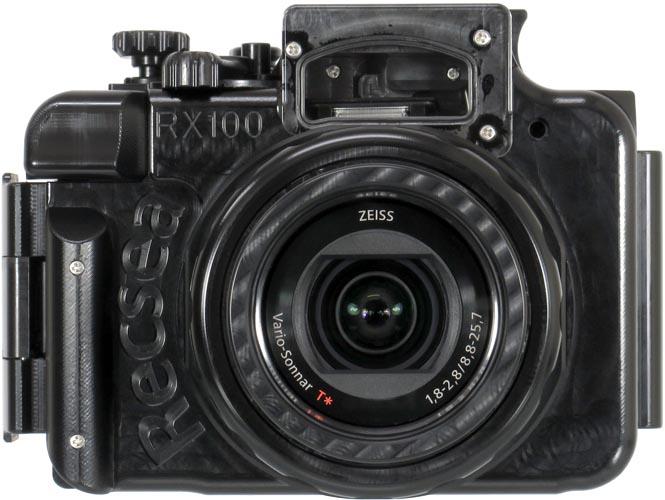

Recsea RX100 IV, V Underwater Housing

As always Recsea housings are made of high quality machined aluminum with excellent controls and full camera functionality. The Recsea housings fit the camera like a glove, offering the smallest housing on the market without losing any functionality. Easy to use, adaptable with many different wet wide angle and macro lenses, and including strobe connections, the Recsea housing is the perfect tool for taking your Sony RX-100 IV or V underwater.

Purchase the Recsea RX100 IV, V Housing

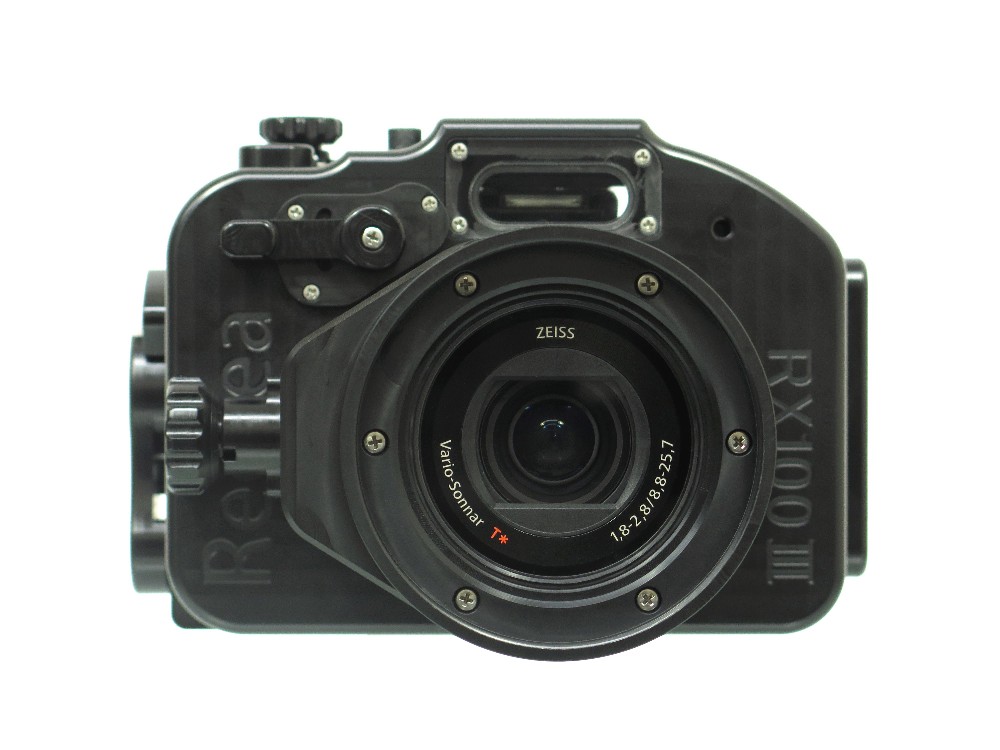

Recsea RX100 IV, V CW Underwater Housing

Recsea offers a high quality polycarbonate housing for the Sony RX100 IV, which is compatible with the RX100 V. Designed with the same precision engineering as the high quality aluminum RX100 IV Housing the new CW housing comes at a much lower price, great if you are on a budget. The new CW housings come with 67mm threads built in which means you can attach some lenses without an adapter.

Purchase the Recsea RX100 IV, V CW Housing

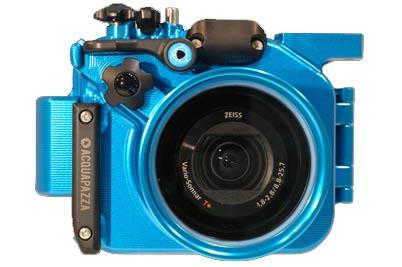

Acquapazza RX100 IV, V Underwater Housing

Acquapazza is a high quality aluminum housing made in Japan. Small and easy to use, it allows for full access to the camera features, with split out button and dial controls. Built in 67mm threads allow for easy attachment of wet lenses. Acquapazza housings are available in a number of different anodized colors.

Purchase the Acquapazza RX100 IV, V Housing

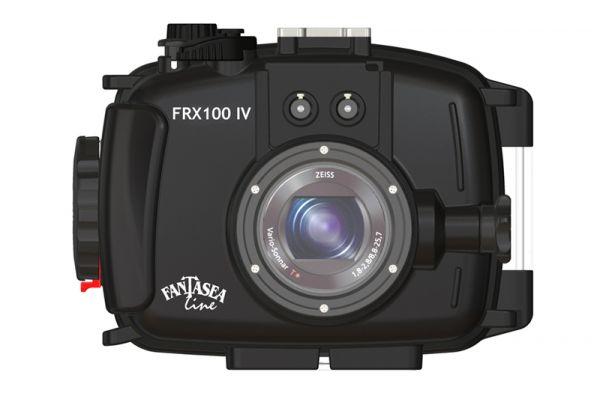

Fantasea RX100 V Underwater Housing

The Fantasea Sony RX100 V housing is made of tough plastic, creating a lightweight and sturdy housing. It also works with the RX100 VA. Controls are easy to access and very clearly labeled. The housing is also compatible with flash accessories, plus wide-angle and macro wet lenses and other gear. A cold shoe mount makes it easy to attach a focus light, video light, a GoPro or other accessory. If you are looking for a lower priced housing, this is an excellent choice.

Purchase the Fantasea RX100 V Housing

To Buy or Not To Buy?

The RX100 V/VA is clearly an excellent option for compact shooters, and will allow you to get awesome photos. The question though is whether it's worth the higher price tag than its competitors. Here is a quick breakdown of some of the key comparisons between the RX100V, the RX100IV and the Canon G7X II.



RX100 V (VA)



RX100 IV

G7X II

MSRP



$999

$899

$699

Sensor Rating



70

70

71

Lens specs

24-70mm

F1.8-2.8

24-70mm

F1.8-2.8

24-100mm

F1.8-2.8

Autofocus

315-point phase detection (much better)

Contrast detection

Contrast detection

Flash recycle time

Slow

Slow

Quicker

Viewfinder



Yes

Yes

No

Video modes

4K/30p with 5K oversampling and reduced rolling shutter

1080/120p

4K/30p

1080/120p

1080/60p

Slow motion video

960 fps for 4-7 seconds

960 fps for 2-4 seconds

No

Battery Life (CIPA)



220

280

265

Burst Shooting



24 fps

16 fps

8 fps



The camera you should choose ultimately depends on what you are looking for and how much you have to spend.

Consider the RX100 V if:

  • You want the faster autofocus
  • You want the highest quality 4K video possible
  • You want to shoot long slow motion clips
  • You want to shoot extremely fast bursts (consider the RX100 VA for a nice image buffer and better processing power)
  • You are OK with swapping your battery out more often (potentially every one or two dives, especially if taking lots of video)

Consider the RX100 IV if:

  • You want to shoot 4K video and you are OK with some rolling shutter effect and missing the 5K oversampling
  • You want to shoot slow motion clips and 2-4 seconds is enough for you
  • You want to shoot fast bursts
  • You want a bit longer battery life
  • You want to save some money

Consider the G7X II if:

  • You want to save a significant amount of money
  • You are fine shooting 1080/60p video without 4K or slow motion
  • You want the extra range of the 100mm lens instead of 70mm for macro or shy subjects
  • You want a faster flash recycle time to use your strobes more quickly on consecutive shots
  • You want more battery life than the RX100 V
  • You are good with having a burst shooting mode of 8 fps

If you already have the RX100 IV, then the only reason to spend the money to upgrade is if you are really wanting the very best 4K video, you have problems with autofocus, or you want to take longer slow motion video clips. The good news if you do decide to upgrade is that most housings for the RX100 IV are fully compatible with the RX100 V.

Remember that whichever compact camera you choose, adding strobes and wet lenses will allow you to make significant improvements in your potential for taking high quality images. And if your choice is between upgrading compact camera or adding a strobe or a wet lens, your money may be better spent adding one of those to your current setup.

You can read our full review of the Canon G7X II here and our full review of the RX100 IV here.

Conclusion

The Sony RX100 V (and VA) boasts fantastic image quality, amazing 4K video quality, and the ability to take phenomenal slow motion video. A wide array of underwater housings and lenses provide a lot of options that cover multiple budgets and intended uses. All of this makes the Sony RX100 V one of the best choices for underwater photographers looking to get the maximum photography and videography options from a compact rig. The specs are so good on this camera that a competent photographer with the right gear can take photos that challenge the quality of those from more expensive and bulkier mirrorless rigs, as can be seen from the sample photos provided from our community throughout this article. The question is not whether this camera is worth the price tag, but whether it is the best way to spend limited money that could potentially be spent elsewhere.
