Aquatica Releases ACU Macro System

Aquatica revamps macro port, extensions, and flip adapter as a complete system to support their +5 and +10 supermacro diopters
By Brent Durand

Aquatica has been making moves for macro photographers, and today they announce the Aquatica Close Up System. The ACU system consists of the full Aquatica macro and supermacro system, including recently redesigned elements, grouped together as a complete compenent set.

Aquatica's recently redesigned Mini Macro Port is the base, with a lower front profile than the traditional flat glass port. New extension rings and zoom gears accommodate manual focusing with the popular DSLR macro lenses.

Supermacro shooters can now enjoy a single or double flip adapter for the Aquatica +5 and/or +10 diopters.

With divers shooting more than ever during dives, you can never be too prepared. Having the ability to use AF or MF plus the choice to flip on either diopter will help photographers bring home the shot, whether photo or video. I recently did about 65 dives laying my diopter in the sand all the time, screwing and unscrewing it over and over - not ideal.  A flip adapter is definitely a must for any macro shooter!


Aquatica ACU System

The experts at Bluewater Photo can guide you into the ACU system or best components for your macro photography.

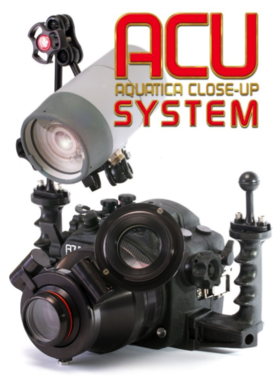

Introducing the ACU system from AQUATICA

Aquatica has assembled and redesigned its whole range of close up accessories under the ACU system banner, which stands for Aquatica Close-Up System.


The ACU system consolidates all the components of our macro and close-up accessories (new and existing ones) into a comprehensive underwater close-up system. In doing so, the engineering department reviewed the system so that every component would work flawlessly with each other. Aquatica took the double element close up lenses it already had, now known as the ACU5 and ACU10, and matched every component of the system to the optical characteristics of the macro lens of your choice.

This consolidation makes it simple for you to navigate through the system and pick the right setup for your macrophotography requirements.

With top quality close up lenses as the corner stone of the ACU system, a new Mini Macro Port with a much smaller frontal signature was created, on its front is a bayonet ready to accept the ACU Flip Holder in both single and double versions. To optimize the ACU system to its full potential, the port extension ring selection was revised with a new series being introduced. New gears for manually focusing the popular macro lenses have also joined the ranks of the Aquatica system.



The ACU System Essential Components:

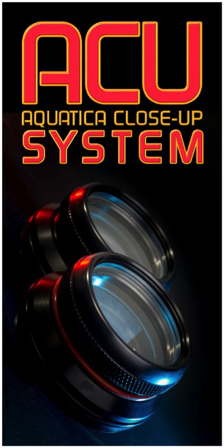

The ACU5 and ACU10 lenses:

The corner stone of the ACU system are its water contact close up lenses, the ACU5 and ACU10, these are doublet type close up diopters made of BK7 fully coated mineral glass, they offer unsurpassed corner to corner image quality when mounted on our dedicated ACU system. Optical elements are sealed in a lens body which like all ACU System component is machined from top grade aluminum alloys and anodized to military specification.

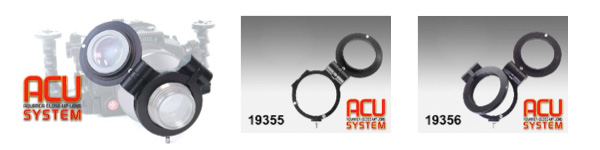

The ACU Flip Holder:

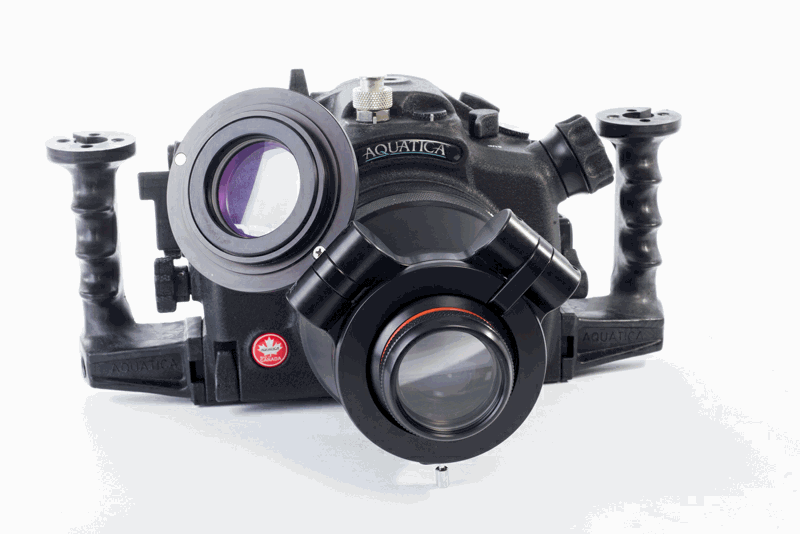

Available as a single or double hinged holder, it is optimized to work with the ACU5 and ACU10 close up lenses, bringing the rear element of the ACU lenses right to the front window lens of the macro port, an essential detail for making the most of underwater water contact lenses. Its 67mm threads means that it is flexible in its selection of close up lens available. The ACU Flip holder locks firmly on the front of the ACU Mini Macro Port with absolutely no potential of rotating out of alignment by itself.


The ACU Mini Macro Port:

This port is a key element of the new system, its small frontal signature makes lighting your macro subject easy in close quarters. This port has a bayonet on its front which is ready for receiving and safely locking in place the ACU Flip Holder at a moment’s notice. Additionally, the rear features a locking tab compatible with the newly introduced lockable 4000 series extension rings. The 77mm diameter of its front is designed so that the ACU Flip Holder lenses are able to sit right up against the port window lens to extract the maximum performance from the ACU5 and ACU10 close up lenses.

The ACU 77mm to 67mm step down ring:

This step down ring is available for converting the ACU Mini Macro Port to accept the ACU5 and ACU10 lenses directly on the port, it also makes the ACU Mini Macro Port compatible with most close up lenses equipped with 67mm thread.

The ACU lens caddy:

 This convenient lens caddy mounts on our Aquatica grips and will accept the ACU lenses as well as most close up lenses of 67mm threaded mounts.


Manual focusing gears:

A definitive advantage when working at large magnification is the capability of manually focusing the lens, new focusing gears have been introduced for the popular macro lenses currently used in underwater photography, these connect directly to the housing focusing knob located on the left side of Aquatica housings.



Typical of Aquatica commitment to its already established users, compatibility with previous component is a constant priority for us, previous macro ports can access the ACU5 and ACU10 lenses with our ACU 19351 lens holder, and owner of 1000 series extension can convert these extension rings with a locking collar to secure them to the ACU Mini Macro Port.




The experts at Bluewater Photo can guide you into the ACU system or best components for your macro photography.
