Nauticam Announces Sony RX100 IV Housing


We look at the ergonomics, build quality and innovative feature set in Nauticam's newest aluminum housing

By UWPG News, August 3, 2015



SHARE THIS STORY

Nauticam has announced their housing for the Sony RX100 IV compact camera, available August 3, 2015. The NA-RX100IV housing is the ultimate refinement of three RX100 camera housings made before it.

Controls are placed at the user's fingertips, while different accessory options make the Nauticam Sony RX100 IV housing a versatile option for different styles of underwater photo and video shooting. New for the NA-RX100IV is a mechanical trigger release extension for easy shooting

The Sony RX100 IV has taken yet another major step in the world of compact cameras. Highlights include 20MP still images, ability to shoot 4K video, 5x faster processor than the RX100 III and super slow motion video at up to 960fps (40x slow motion). Check out the Sony RX100IV specs.




Purchase the Nauticam Sony RX100 IV Housing from Bluewater Photo






PRESS RELEASE



Announcing NA-RX100IV

The New Housing for Sony RX100 IV

Nauticam is pleased to announce the release of its newest aluminum underwater camera housing for the Sony RX100 IV.  Three years ago Sony redefined the advanced compact camera with RX100, and the subsequent iterations of RX100 II and RX100 III went on to forge a completely new category. The NA-RX100IV housing provides the ergonomics, build quality, and innovative feature set our customers demand in a tiny, travel friendly package.



The Sony RX100 IV

The Sony Cyber-shot DSC-RX100M4, is the fourth in this series of advanced, large sensor compact cameras that have been hugely popular with underwater enthusiasts.  The familiar body style and fast, optically superb 24-70mm zoom lens are retained from RX100 III, but paired with an entirely new 20.1MP 1" Exmor RS sensor.

Exmor RS sensors use a construction method never seen before on a sensor this size that provides more than 5 times faster readout than the Exmor R sensor used in RX100 III.  This translates into much faster continuous shooting speeds, faster more accurate autofocus, and an electronic shutter capable of achieving incredible speeds up to 1/32,000 sec.

Movie functionality in RX100 IV is tremendously improved over previous models. It is the first in the RX100 series to feature Ultra High Definition Video (3840x2160 30p), and High Definition Video (1920 x 1080) at up to 120 fps.  Video is recorded in the high quality XAVC S format at up to 100Mbps.  A new high speed video mode allows slow motion capture at up to 960 fps!

Specifications:

  • 20.1 MP 1"-type stacked CMOS Sensor
  • f/1.8-2.8 24-70mm equivalent zoom lens
  • Optical Image Stabilization
  • 1/32,000 sec max electronic shutter speed (1/2,000 sec mechanical shutter)
  • 16 fps continuous shooting
  • Slow motion video recording up to 1000 fps (960 fps in NTSC mode)
  • 4K (UHD) video recording with full sensor readout at 100 Mbps
  • SLog2 gamma setting
  • Dual recording, capturing 17mp stills while recording HD video
  • Tilting 3" 1.3m dot LCD
  • Pop-up 2.36m dot OLED electronic viewfinder
  • Built-in ND filter
  • Wi-Fi with NFC

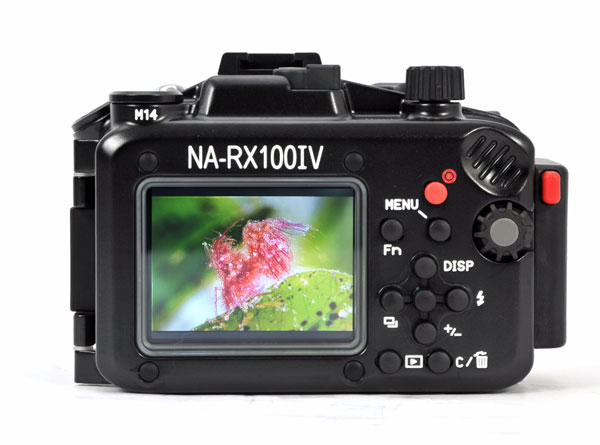

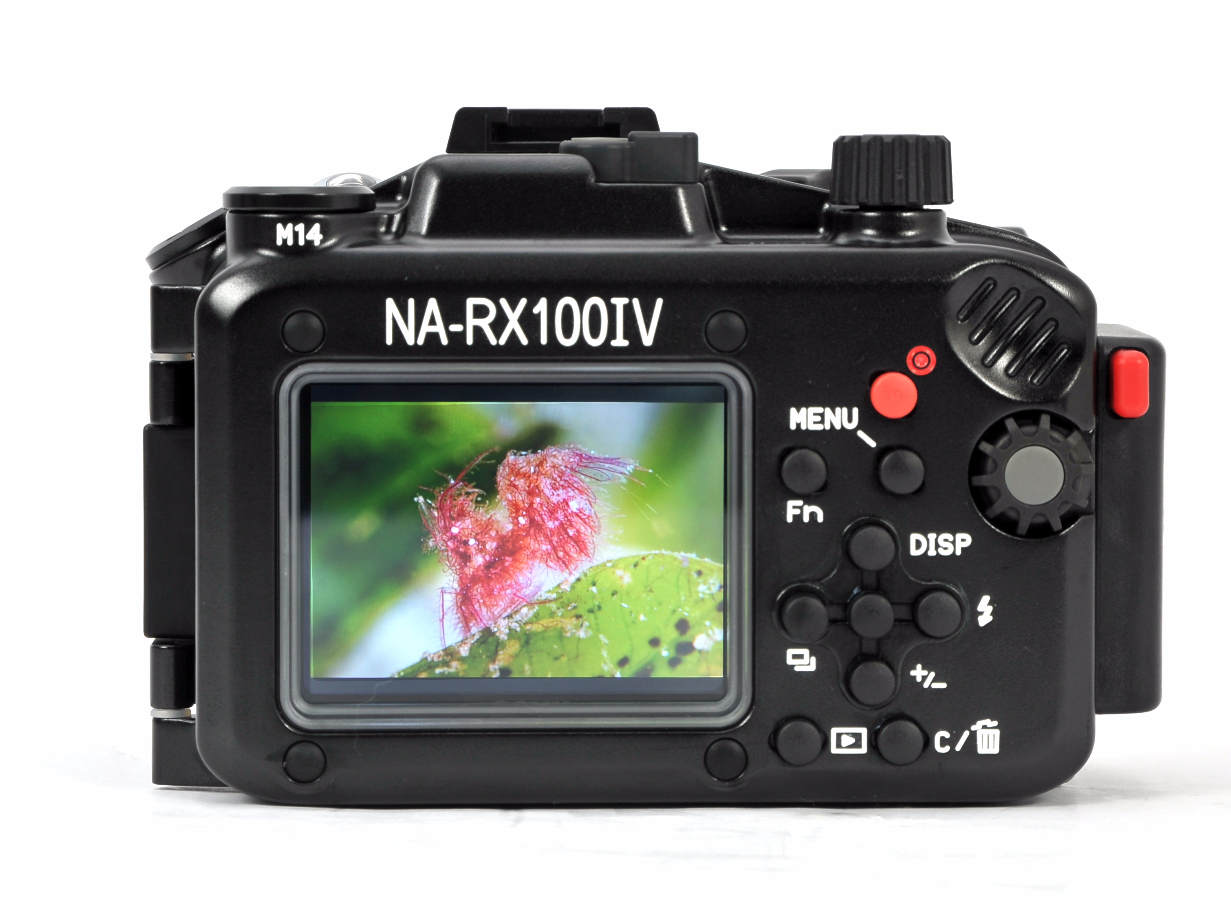

Nauticam NA-RX100IV

The NA-RX100IV sets a new standard for compact camera housing design. It is the ultimate refinement of the three models that came before it, with ergonomics, reliability, and control access improved in each new product.

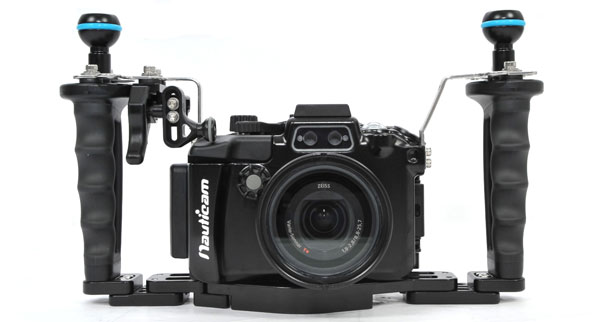

Nauticam designs are always improving, and new features integrated into each new release.  The ergonomic experience has been tailored for a photographer's right hand on the side of the housing, placing key controls literally at the users finger tips. Some users, especially those wearing cold water gloves, prefer shooting from handles such as the Nauticam Flexitray and Easitray. To better support this style of shooting, a set of stainless steel handle brackets and new mechanical shutter release trigger extension is included with every housing.



New Trigger Release Extension!  Ergonomic shutter release access when using a Nauticam accessory tray and handle system.



The features you'd expect are certainly present, like ergonomic design, the clearly labelled controls, sculpted shutter release and more. A updated fiber optic connection block is standard, as is the built-in vacuum check and leak detection system.  Two accessory bulkhead ports support HDMI cables for an external monitor and the vacuum valve.

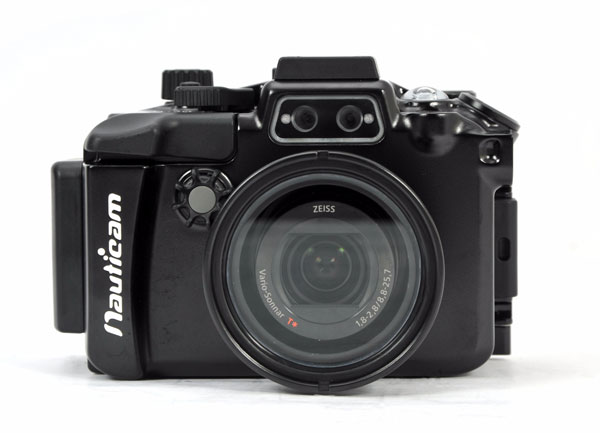

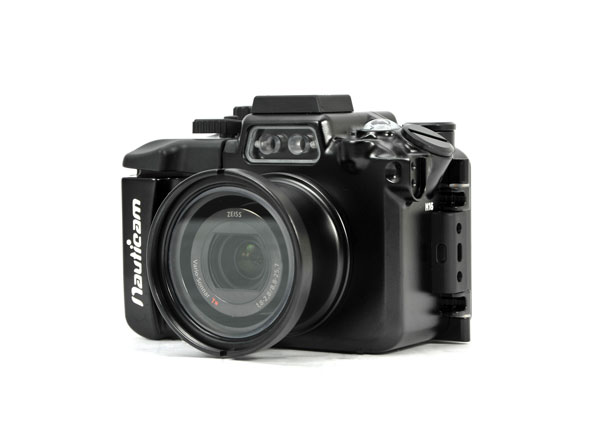

The NA-RX1000IV is milled from a block of solid aluminum, then hard anodized. The result is a rugged and reliable piece of gear that will stand up to saltwater and the daily rigors of diving. Since the housing accesses all of the camera controls, including the front control ring, the user can take advantage of the enhanced programmability in the RX100 IV.



NA-RX100IV Feature Checklist

  • New stainless steel handle brackets and trigger release
  • Secure, easy to use locking latch
  • Ergonomic controls with size, shape and color differentiation
  • All camera controls accessible
  • All controls clearly labeled
  • Popup/push down flash lever
  • Fiber optic bulkheads
  • Integrated leak detector and vacuum monitoring circuit
  • M10 accessory mounting ball
  • Cold shoe accessory mount
  • 67mm threaded port mount for wide angle and macro lenses
  • 1/4-20 tripod or tray mounting holes
  • Sculpted, sensitive shutter release
  • M16 bulkhead port for HDMI output
  • M14 bulkhead port for vacuum valve



Going Wide or Going Small

The RX100 housings feature an industry standard 67mm threaded port mount, meaning it is easy to attach a number of different wet mount lenses.  A compact camera underwater is only as good as the optics in front of it, and the growing Nauticam accessory lens lineup sets new performance standards with every release.

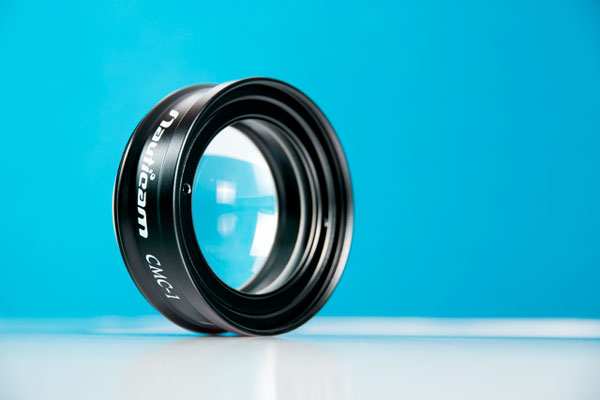

On the macro end, the Compact Super Macro Converter (CMC) is the ideal choice and enables a subject 35mm wide by 23mm tall to fill the frame.  This is over 4x magnification provided by the stock lens (stock lens images 160mm wide, CMC 35mm wide).

All Nauticam lenses are engineered specifically for underwater imaging, not waterproof adaptations of lenses designed for use in air, resulting in superior image quality.  The CMC provides visibly sharper images than competing macro lenses, especially in the corders, with noticeably less purple fringing.  The lens design is also designed with autofocus systems in mind, easing the learning curve associated with high magnification imaging.

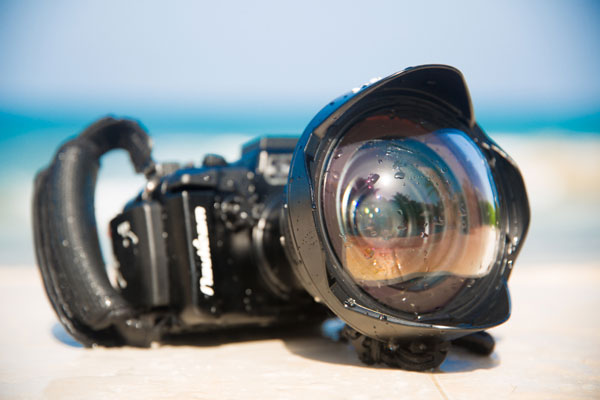

Upcoming Wet Wide Angle Lens

Later this month, Nauticam will unveil the first in a series of wide angle conversion lenses engineered with the same level of precision and vision that has gone into the "best in class" Macro Converter line

This completely sealed and underwater mountable optic is designed to be used in water - with the refractive index of optical glass to water accounted for at every step in the design process.  Optimized for best wide angle performance at the 28mm equivalent focal length, the lens offers 130° diagonal field of view with low distortion, extremely high overall sharpness (especially in the corners), excellent contrast, and resistance to flare.

The outstanding image quality of today's top compacts paired with Nauticam conversion lenses is stunning.  They combine to form a complete system that covers the entire range from macro to super wide angle, and packs into a small backpack or shoulder bag,





Nauticam Vacuum Check System

The engineers at Nauticam managed to squeeze in the Nauticam vacuum monitoring and leak detection electronics. By default, it serves as an audible and visual leak detector, but add a Nauticam M14 Vacuum Valve, (p/n 25611) and it becomes a vacuum check system.  The vacuum monitoring system provides early warning for any problem with watertight integrity - which means peace of mind when shooting underwater.

















Video

The RX100 IV now supports XAVC S Ultra High Definition (3840x2160) 24P/25P/30P video at up to 100 Mbps, as well as HD at up to 120 fps!  Focus peaking and zebra lines are available to assist in confirming sharp focus and correct exposure.  SLog2 Gamma is also available for professional color grading applications.

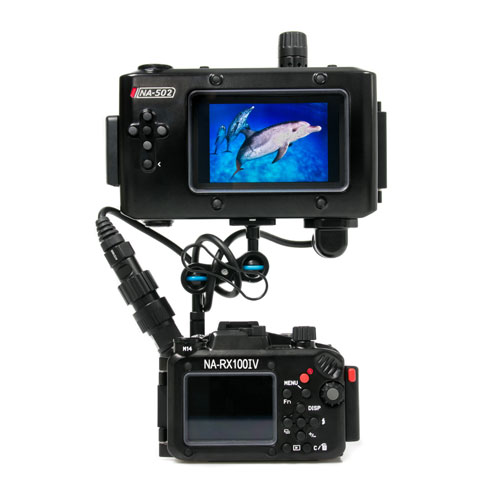

The standard NA-RX100IV housing supports HDMI out, via an optional HDMI bulkhead connected to the M16 accessory hole in the front of the housing. This means that the underwater videographer can use the excellent SmallHD 501 or 502 Monitors (in the NA-502S housing, p/n 17907), the Atomos Ninja 2 Recorder (NA-NINJA2 housing, p/n 17902), or even the Atomos Shogun UHD Recorder (Nauticam Housing p/n 17904). The RX100IV camera offers "clean" HDMI output, allowing high bit rate Apple ProRes recording at up to 4k 30P with Shogun.  These monitors all provide a large, high quality display for judging focus and exposure, and the recording options available in the Atomos products unlock low compression recording formats for professionals.




Purchase the Nauticam Sony RX100 IV Housing from Bluewater Photo






Details and Specifications

  • Depth Rating:  100m
  • Weight: 0.85kg
  • Dimensions: 150mm (w) x 101mm (h) x 109mm (d)

Model Number: 17416
USA Retail Price: $995
Available Worldwide August 3, 2015
